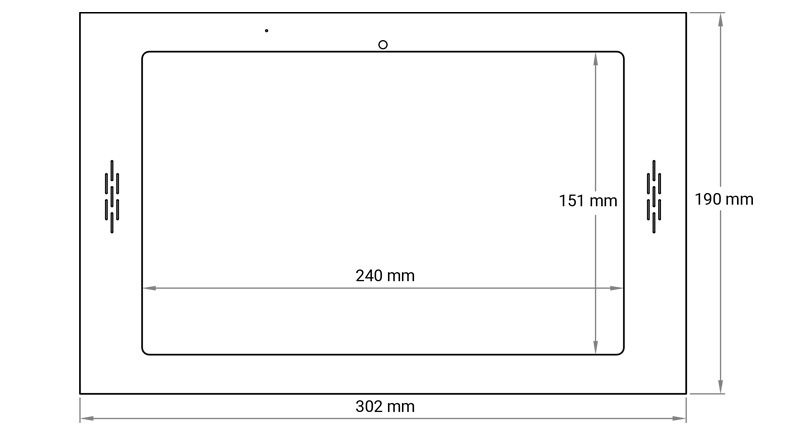

Dimensions
Frame 302 × 190 mm. Only 2 mm proud of the wall.
Menu
- Discover Discover
- Products Products
- Support Support
Get the software
bOS Apps Learn
Video tutorials
Knowledge base
Documentation
Examples library
FAQ Get help
Forum - AI Support Agent
Help Desk
Now with SIP intercom
Bobcat
10″ Android Wall Panel

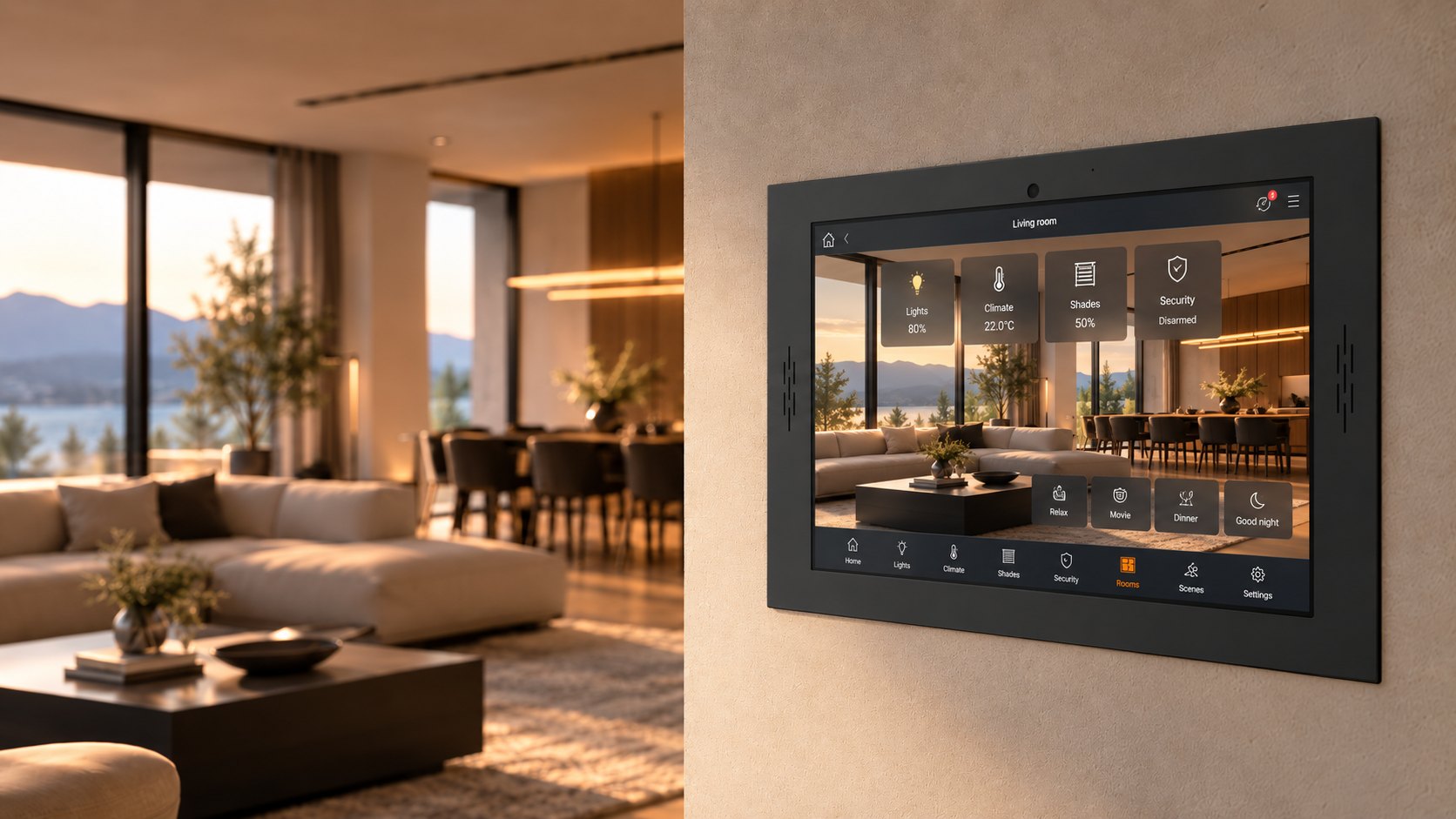

A flush-mounted 10″ Android panel in a slim metal frame. Lights, climate, shades, security, scenes — and now the front door — from one screen on the wall.
SIP intercom
Answer the door from the wall
Android 15
Octa-core, runs bOS Client
Black or white
Metal frame, 2 mm on the wall

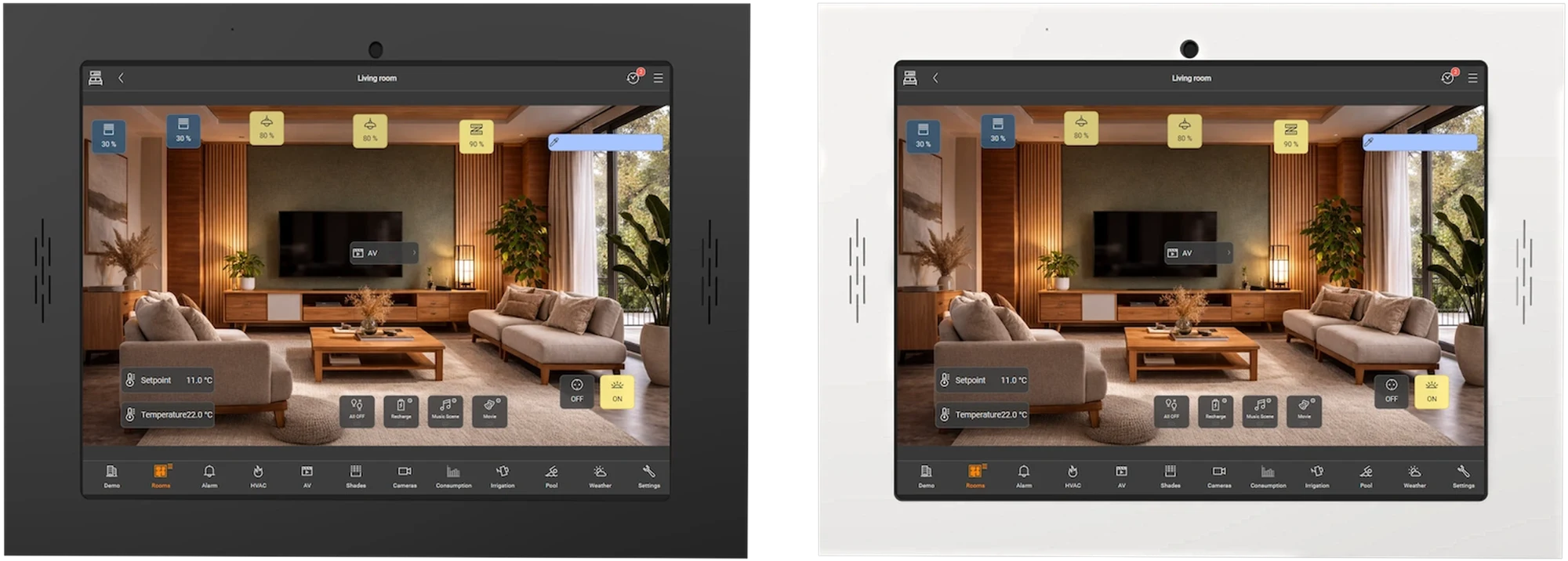

Two finishes
Available in black and white
Bobcat comes in a black or a white metal frame, so it sits quietly in a dark accent wall or disappears into a light one. Same panel, same software — pick the finish that suits the room.
Bobcat Black
CC-BB-3
Bobcat White
CC-BW-3

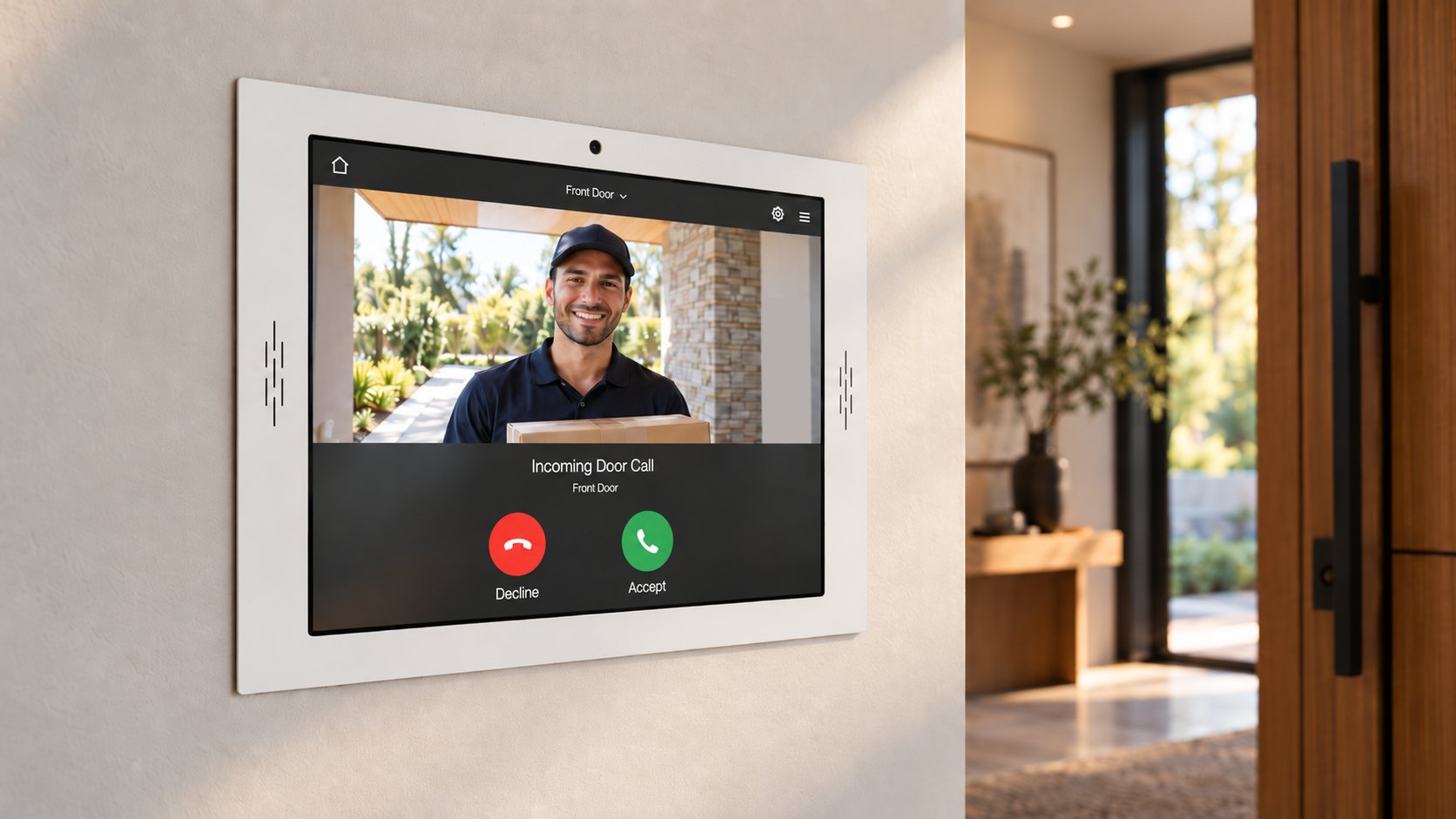

New · SIP intercom
See who’s at the door. Answer directly on Bobcat.
Bobcat now supports SIP intercom. Calls from your SIP door station ring straight on the panel — the same screen that already runs the lights, climate and shades.
- One panel, one wall. No separate indoor monitor.
- Open standard. Works with SIP door stations from many manufacturers.
Specifications
The details
- Name
- Bobcat
- Product nr.
- CC-BB-3 (Bobcat Black) / CC-BW-3 (Bobcat White)
- Description
- Flush mounted Android wall panel
- Frame size
- 302 mm × 190 mm × 2 mm (W×H×D)
- Box size
- 286 mm × 171 mm × 48 mm (W×H×D)
- Frame color
- White, Black
- Touch panel
- Lenovo Tab M11
- Display
- IPS LCD, 90 Hz, 400 nits (typ)
- CPU
- Octa-core (2×2.0 GHz Cortex-A75 & 6×1.8 GHz Cortex-A55)
- OS
- Android 15
- Intercom
- SIP
- Power supply
- 100–240 V, 50/60 Hz
- Power consumption
- Approx. 10 W
Blow up view
Flush-mount box, tablet and metal frame.
Technical documentation
Everything an integrator needs to plan and install Bobcat.
